Stainless Steel 304 Washers Manufacturer and Supplier
ASTM A194 / A193 Stainless Steel 304 Washer, SS 304 Washer, Steel UNS S30400 Washer, Stainless Steel Werkstoff Nr. 1.4301 Washer Dealers & Exporters
Leading Stainless Steel 304 Washer Stockist, SS 304 Washer Supplier, 304 Steel Washers Manufacture in India
Mahabali Steel Centre is one of the leading manufacturer and suppliers of Stainless Steel 304 Washer in India. We specialize in manufacturing 304 Stainless Steel Washer especially the ASTM A193 SS 304 Washer, which is known for their high workability and corrosion resistance.

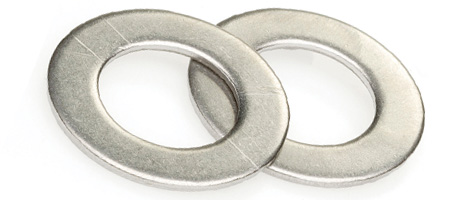

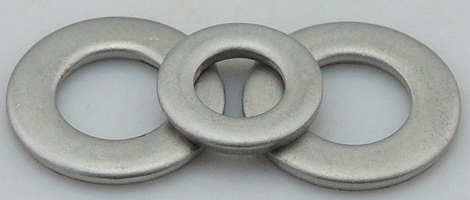

We offer SS 304 Fender Washer ranging from M10 to M100 to our clients in a number of industries and sectors. Stainless Steel 304 Lock Washer is used where locking action is required against rotation of the screw. SS 304 Flat Washer and Stainless Steel 304 Star Washer are supplied to industries for electrical and other engineering applications because of their high-quality finish and close tolerance. We offer Stainless Steel 304 Tab Washer of A2, A4, 200 Series grades, which are manufactured by cold forming to our clients all across the globe.
Our clients from a wide range of industries require Stainless Steel 304 Conical Washer DIN-6319 in the non-corrosive material which distributes the load under the bolt or nut evenly. Our SS 304 Dock Washer and Stainless Steel 304 Neoprene Washers are corrosion-resistant perform well in a wide range of temperatures, including cryogenic temperatures. We manufacture SS 304 Finishing Washers that meets our client’s requirements and specifications and that are in compliance with national and international standards.

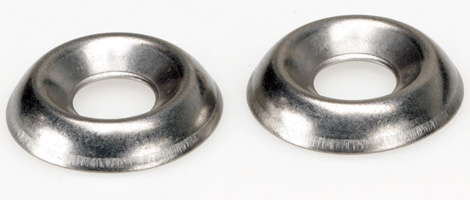

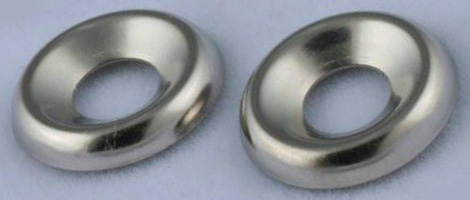

Our manufacturing and fabrication process of Stainless Steel 304 Square Washers happens under the strict supervision of a professional workforce which ensures high quality and durability of all our products. Our Countersunk Washers are designed as an alternative to preparing a flat surface for use with countersunk screws, mainly for aesthetic purposes in gardening equipment, shafts, valves, hardware applications etc.
We are an SS 304 Washers manufacturer that keeps up the strict benchmarks for quality and are committed to constantly improving our offerings. We have acquired the name of being the manufacturer of SS washers fasteners because of present our clients with phenomenal quality, value, and service. We strive to be one of the largest stainless steel washer manufacturers.
Stainless Steel Din 1.4301 Wave Washers, SS 304 Washers, Stainless Steel UNS S30400 Metal Washers, Stainless Steel Werkstoff Nr 1.4301 Star Washers, Steel 304 Flat Washer, Stainless Steel 304 Machine Washer, ASTM A193 Belleville Washers Wholesaler & Trader
Stainless Steel 304 Washers Specifications |
|
Specifications | IS, BS, ASTM |
Standard | ASTM / ASME - A/ SA 193 |
Length | 3 mm to 200 mm |
Size | M02 to M33 |
Type | Flat Washers, Finishing Washers, Tab Washers, Conical Washers, Special Washers, Belleville Washer, Bonded Sealing Washer, Countersunk Finishing Washer, Dock Washer, Fender Washer, Lock Washer, Neoprene Washer, Square Bevel Washer, Star Washer |
Stainless Steel 304 Washers Equivalent Grades
AISI Grade Equivalent | STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
AISI 304 | SS 304 | 1.4301 | S30400 | SUS 304 | X4CrNi18-10 |
Stainless Steel 304 Washers Sizes |
||||
Sizes | A | B | C | Weight (lbs.) Per 100 Pieces |
Inside Diameter | Outside Diameter | Thickness | ||
1/2 | 9/16 | 13/8 | 0.109 | 4 |
5/8 | 11/16 | 13/4 | 0.134 | 8 |
3/4 | 13/16 | 2 | 0.148 | 11 |
7/8 | 15/16 | 21/4 | 0.165 | 15 |
1 | 11/16 | 21/2 | 0.165 | 19 |
11/8 | 11/4 | 23/4 | 0.165 | 22 |
11/4 | 13/8 | 3 | 0.165 | 26 |
13/8 | 11/2 | 31/4 | 0.180 | 33 |
11/2 | 15/8 | 31/2 | 0.180 | 38 |
15/8 | 13/4 | 33/4 | 0.180 | 43 |
13/4 | 17/8 | 4 | 0.180 | 50 |
17/8 | 2 | 41/4 | 0.180 | 57 |
2 | 21/8 | 41/2 | 0.180 | 63 |
21/4 | 23/8 | 43/4 | 0.220 | 83 |
21/2 | 25/8 | 5 | 0.238 | 96 |
23/4 | 27/8 | 51/4 | 0.259 | 110 |
3 | 31/8 | 51/2 | 0.284 | 130 |
SS UNS S30400 Washers Chemical Composition
Element | SS 304 |
Ni | 8.0 – 10.5 |
C | 0.08 |
Mn | 2.0 max |
P | 0.045 max |
S | 0.030 max |
Si | 0.75 max |
Cr | 18.0 – 20.0 |
Mo | - |
N | 0.10 |
304 Stainless Steel Washers Mechanical Properties
Element | SS 304 |
Tensile Strength (MPa) min | 515 |
Yield Strength 0.2% Proof (MPa) min | 205 |
Elongation (% in 50mm) min | 40 |
Rockwell B (HR B) max Hardness | 92 |
Brinell (HB) max Hardness | 201 |
304 Stainless Steel Washers Physical Properties
Element | SS 304 |
Density(kg/m3) | 8000 |
Elastic Modulus (GPa) | 193 |
Mean Coefficient of Thermal Expansion (m/m/°C) | 17.2 / 17.8 / 18.4 |
Thermal Conductivity (W/m.K) | 16.2 / 21.5 |
Specific Heat 0-100°C (J/kg.K) | 500 |
Electrical Resistivity(n.m) | 720 |
Latest Stainless Steel 304 Washers price list:
We Mahabali Steel Center offer best in class Stainless Steel 304 Washers at best market prices in India. Request the Latest Stainless Steel 304 Washers price list using the contact form here.
Stainless Steel 304 Washers Available Types |
|||
SS 304 Flat Washers | 304 SS Finishing Washers | Steel 304 Tab Washers | 304 Steel Conical Washers |
SS 304 Special Washers | 304 SS Belleville Washers | Steel 304 Bonded Sealing Washers | 304 Steel Countersunk Finishing Washers |
SS 304 Dock Washers | 304 SS Fender Washers | Steel 304 Lock Washers | 304 Steel Neoprene Washers |
SS 304 Square Bevel Washers | 304 SS Star Washers | Steel 304 Spring Washers | 304 Steel Plain Washers |
SS 304 Metal Washers | 304 SS Wave Washers | Steel 304 Crank Washers | 304 Steel Square Washers |
SS 304 Hex Washers | 304 SS Star Lock Washers | Steel 304 Aluminium Washers | 304 Steel Thrust Washers |
SS 304 Serrated Washers | 304 SS Cup Washers |
Stainless Steel 304 Washers Available Standards |
|||
ASTM | ASTM F436 Stainless Steel 304 Washers | ASTM F436M Stainless Steel 304 Washers | ASTM 1985 Stainless Steel 304 Washers |
DIN | DIN 125 A (ISO 7089) Washers | DIN 125 B (ISO 7090) Washers | DIN 126 Washers |
DIN 9021 Washers | DIN 440 R Washers | DIN 7349 Washers | |
DIN 433 Washers | DIN 127 Washers | DIN 128 Washers | |
DIN 434 Washers | DIN 435 Washers | DIN 1440 Washers | |
DIN 440v Washers | DIN 6903 Washers | DIN 6916 Washers | |
DIN 7349 Washers | DIN 7989 Washers | ||
BS | BS 4320 Form A Washers | BS 4320 Form B Washers | BS 4320 Form C Washers |
BS 4320 Form D Washers | BS 4395 Washers | ||
IS / AS | IS 2016 Washers | AS NZS 1252 Washers | |
JIS | JIS B 1186 Washers | JIS B 1256 Washers | |
NF | NF E25-513 Z,M Washers | NF E25-513 L,LL Washers |
