Stainless Steel 316 Screw Manufacturer and Supplier

ASTM A194 / A193 Stainless Steel 316 Screw, SS 316 Screw, Steel UNS S31600 Screw, Stainless Steel Werkstoff Nr. 1.4401 Screw, Stainless Steel 316 Screws / Nuts Manufacturer & Supplier in India

SS 316 Machine Screw, SS 316 Lag Screws, Stainless Steel 316 Cap Screw, Stainless Steel 316 Self Tapping Screw, Stainless Steel 316 Phillips Head Screw Dealer & Exporter

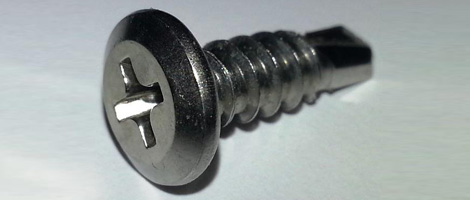

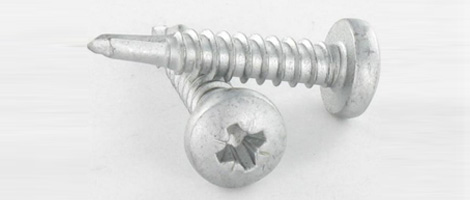

  • SS 316 Screw

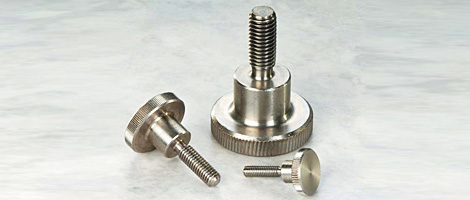

  • 316 SS Screw

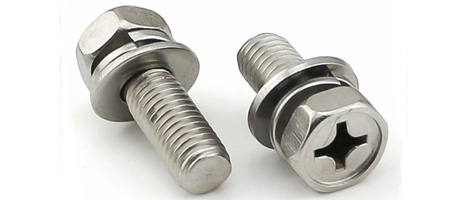

  • 316 Steel Screw
  • Stainless Steel 316 Screw

Mahabali Steel Centre is a professional Stainless Steel 316 Screw manufacturing company known for its ASTM A194 Stainless Steel 316 Screw across industries. SS 316 Screws are available in a range of grades and in metric and inches.

We offer a ready to order inventory of SS 316 Screws Grade and stock a decent quantity of various Ss 316 Screws Sizes at our warehouses. We assure a competitive SS 316 screw price list to all our clients irrespective of the SS 316 screw specification of our clients.

We offer a wide range of Stainless Steel 316 Set Screw, Stainless Steel 316 Lag Screw and Stainless Steel 316 Self Tapping Screws of a commendable quality and durability. Because of its high chromium and nickel content, 316 grade is preferred for highly corrosive applications, we deliver Stainless Steel 316 concrete screws and Stainless Steel roofing screws to our clients in marine industries. SS 316 Cap Screw supports heavy duty applications and we also offer them in large quantities. We have a ready to sale inventory of SS 316 Machine Screw and Stainless Steel 316 Drywall Screws supported by a minimum order quantity. Stainless Steel 316 Wood Screws are supplied to our clients who use it in harsh environments having head diameters of 0.332” to a minimum of 0.292”.

We engineer our Steel 316 Coach Screws and Steel 316 Chipboard Screws to meet the needs of our clients for their applications in a wide range of sectors. Our clients prefer Stainless Steel 316 Sheet Metal Screws for use in marine environments because of its greater resistance to pitting corrosion. We deliver Stainless Steel 316 Phillips Head Screw to our clients. The Phillips drive has an x-shaped slot that accepts a Phillips driver and is designed to prevent over-tightening for better handling. Contact us for further details about stainless steel screws.

Stainless Steel 316 Screw Fastener, DIN 931 / 933 SS 316 Screw Stockist, SS 316 Hex Head Screw, SS 316 Socket Head Cap Screw, SS 316 Concrete Screw, SS 316 Threaded Screw, Stainless Steel 316 Shoulder Screw, SS 316 Panel Screw Supplier


Stainless Steel 316 Screw Specifications

Specifications IS, BS, ASTM
Standard ASTM / ASME - A/ SA 193
Length 3 mm to 200 mm
Size M3 to M33
Type Self Drilling Screw, Self Tapping Screw, Thread Rolling Screw, Thread Cutting Screw, Machine Screw, Concrete Screw, Roofing Screw, Drywall Screw, Particle Board Screw, Chipboard Screw, Construction Screws, Coach Screws, Lag Screws, Wood Screw, Euro Screw, Collated Screw, Furniture Screw, Sems Screw, Phillips Head Screw, Set Screws, Metric Set Screws, Sheet Metal Screws, Eye Screw, Security Head Screw, Wing Screw, Thumb Screw

Stainless Steel 316 Screw Equivalent Grades

AISI Grade Equivalent STANDARD WERKSTOFF NR. UNS JIS EN
AISI 316 SS 316 1.4401 S31600 SUS 316 X5CrNiMo17-12-2

Stainless Steel 316 Screw Sizes

Stainless Steel 316 Screw Sizes Stainless Steel 316 Screw size chart Stainless Steel 316 Screw size guide Stainless Steel 316 Screw dimensions
3/8″-16 x 1″ Grade 5 Stainless Steel 316 Screw 1/2″-13 x 1-1/2″ Grade 5 Stainless Steel 316 Screw 1/4″-20 x 1″ Grade 5 Stainless Steel 316 Screw
3/8″-16 x 1-1/4″ Grade 5 Stainless Steel 316 Screw 3/8″-16 x 1-1/2″ Grade 5 Stainless Steel 316 Screw 1/4″-20 x 3/4″ Grade 5 Stainless Steel 316 Screw
1/2″-13 x 2″ Grade 8 Yellow Stainless Steel 316 Screw 1/2″-13 x 2″ Grade 5 Stainless Steel 316 Screw 1/2″-13 x 1-1/2″ Grade 8 Yellow Stainless Steel 316 Screw
5/8″-11 x 2″ Grade 8 Yellow Stainless Steel 316 Screw 5/16″-18 x 1″ Grade 5 Stainless Steel 316 Screw 3/8″-16 x 1″ Grade 8 Yellow Stainless Steel 316 Screw
3/8″-16 x 1″ Grade 18-8 Stainless Steel 316 Screw 3/8″-16 x 1-1/2″ Grade 8 Yellow Stainless Steel 316 Screw 1/4″-20 x 1″ Grade 18-8 Stainless Steel 316 Screw
5/8″-11 x 2″ Grade 5 Stainless Steel 316 Screw 5/8″-11 x 2-1/2″ Grade 8 Yellow Stainless Steel 316 Screw 3/8″-16 x 2″ Grade 5 Stainless Steel 316 Screw
3/8″-16 x 1-1/4″ Grade 8 Yellow Stainless Steel 316 Screw 1/4″-20 x 3/4″ Grade 18-8 Stainless Steel 316 Screw Stainless Steel 316 Screw size table
Stainless Steel 316 Screw specifications

SS UNS S31600 Screw Chemical Composition

Element SS 316
Ni 10.0 – 14.0
C 0.08
Mn 2.0
P 0.045
S 0.03
Si 0.75
Cr 16.0 – 18.0
Mo 2.00 - 3.00
N 0.10

316 Stainless Steel Screw Mechanical Properties

Element SS 316
Tensile Strength (MPa) min 515
Yield Strength 0.2% Proof (MPa) min 205
Elongation (% in 50mm) min 40
Rockwell B (HR B) max Hardness 95
Brinell (HB) max Hardness 217

316 Stainless Steel Screw Physical Properties

Element SS 316
Density(kg/m3) 8000
Elastic Modulus (GPa) 193
Mean Coefficient of Thermal Expansion (m/m/°C) 15.9 / 16.2 / 17.5
Thermal Conductivity (W/m.K) 16.3 / 21.5
Specific Heat 0-100°C (J/kg.K) 500
Electrical Resistivity(n.m) 740

Latest Stainless Steel 316 Screw prices list:

We Mahabali Steel Center offer best in class stainless steel 316 screws at reasonable prices. Request the Latest stainless steel 316 screw price list in india using the contact form here.

Stainless Steel 316 Screw Available Types

SS 316 Self Drilling Screw 316 SS Self Tapping Screw Steel 316 Thread Rolling Screw 316 Steel Thread Cutting Screw
SS 316 Machine Screw 316 SS Concrete Screw Steel 316 Roofing Screw 316 Steel Drywall Screw
SS 316 Particle Board Screw 316 SS Chipboard Screw Steel 316 Construction Screws 316 Steel Coach Screws
SS 316 Lag Screws 316 SS Wood Screw Steel 316 Euro Screw 316 Steel Collated Screw
SS 316 Furniture Screw 316 SS Sems Screw Steel 316 Phillips Head Screw 316 Steel Set Screws
SS 316 Metric Set Screws 316 SS Sheet Metal Screws Steel 316 Eye Screw 316 Steel Security Head Screw
SS 316 Wing Screw 316 SS Thumb Screw

Stainless Steel 316 Screw Available Standards

ASTM ASTM A 193 Stainless Steel 316 Screw ASTM SA 193 Stainless Steel 316 Screw ASTM A307 Stainless Steel 316 Screw
ASTM A320 Stainless Steel 316 Screw ASTM A325 Stainless Steel 316 Screw ASTM A354 Stainless Steel 316 Screw
ASTM A449 Stainless Steel 316 Screw ASTM A490 Stainless Steel 316 Screw ASTM A325M Stainless Steel 316 Screw
ASTM F568 Stainless Steel 316 Screw ASTM F593 Stainless Steel 316 Screw ASTM F1554 Stainless Steel 316 Screw
IS IS 1363 Screw IS 1364 Screw IS 2585 Screw
IS 3138 Screw IS 3640 Screw IS 10238 Screw
IS 3757 Screw IS 6639 Screw
DIN DIN 931 Screw DIN 933 Screw DIN 960 Screw
DIN 961 Screw DIN 7990 Screw DIN 610 Screw
DIN 6914 Screw DIN 6915 Screw
BS BS 1083 Screw BS 1768 Screw BS 1769 Screw
ANSI ANSI B18.2.1 Screw
ISO ISO 7412 Screw
