Hexagon Head Bolts ISO 4014 Manufacturer & Supplier

Most Trusted & Certified Manufacturer & Supplier of Hexagon Head Bolts ISO 4014, ISO 4014 Hex Head Bolts, Metric ISO 4014 Large Diameter Hex Bolts with Extended Thread as per custom specification in Mumbai, India

ASTM 194 / A193 ISO 4014 Stainless Steel Hexagon Head Bolts, ISO 4041 Carbon Steel Hex Head Bolts, ISO 4014 Alloy Steel Hexagon Head Bolts, Nickel Alloy Hex Head Bolts ISO 4014 Exporter & Stockists

At Mahabali Steel Centre, we are one of the main makers, dealers, and providers of a superb quality ISO 4014 Hexagon Head Bolts in a wide range of thicknesses, lengths, grades and materials in India and across worldwide clientele at market leading prices.

We stock a large number of Hexagon Head Bolts ISO 4014 with respect to the nation and international standards to meet complete needs of our esteemed customers. It includes ISO 4014 Stainless Steel Hex Head Bolts, ISO 4014 Carbon Steel Hex Head Bolts, ISO 4014 Nickel Alloy Hex Head Bolts, and ISO 4014 Alloy Steel Hex Head Bolts etc. These high strength hexagon head bolts come which zinc galvanized for better corrosion protection.

These hex-head bolts with partial threads or sometimes threaded along the entire length according to ISO 4014 made to fit a variety of standards - Indian, German, Japanese, American and British. As a leading manufacturer and supplier, we export and design premium quality hexagon head bolts that correspond to ISO 4014; DIN 931; CSN 21101; PN 82101 equivalent norms.

ASME SAE A193 Galvanised Steel ISO 4014 Hexagon Head Bolts, ISO 4014 SS 304 Hex Head Bolts Exporter, ISO 4014 SS 316 Hexagon Head Bolts Supplier, Stockholder in India

Hexagon Head Bolts ISO 4014

ISO 4014 Hexagon Head Bolts

Hexagon Head ISO 4014 Bolts

Hexagon Head Bolts 4014

Kindly do call us today or send an inquiry to get a free quote or to discuss regarding our quality hexagon head bolts products!

Hexagon Head Bolts ISO 4014 Specifications

Standards ASTM / ASME SB 160 / 164 / 425 / 166 / 446 / 574 / 472 / A/SA 193 / 194 / 194 GR / UNS NO. S 31803, S 32205
Length 3 mm to 200 mm
Size M02 to M33
Hexagon Head Bolts ISO 4014 Manufacturer GKW, Unbrako, Kundan, APL, Sundaram Precision, EBY Fastener Etc.
Material Stainless Steel, Low carbon steel, Alloy carbon steel, High Tensile, Nickel Alloy, Alloy Steel, Mild Steel, Copper, Brass, Aluminium
Stainless Steel Hexagon Head Bolts ISO 4014 in Grade SS 304, SS 304L, SS 309, SS 310, SS 316, SS 316L, SS 317, SS 317L, SS 321, SS 330, SS 347, SS 410, SS 430, SS 440C
Nickel Alloy Hexagon Head Bolts ISO 4014 Hastelloy Hexagon Head Bolts ISO 4014, Cupro Nickel Hexagon Head Bolts ISO 4014, Nickel Hexagon Head Bolts ISO 4014, Monel Hexagon Head Bolts ISO 4014, Inconel Hexagon Head Bolts ISO 4014, Alloy 20 Hexagon Head Bolts ISO 4014
Finish Plain, black, zinc plated (Cr,3+), zinc plated(Cr,6+), hot dipped galvanized, dacromet, nickel plated, cadmium plated, etc.
Packing IN BULK :canton/pallet, Small Boxs/carton/ pallet, or customer request

Hexagon Head Bolts ISO 4014 Sizes

Hexagon Head Bolts ISO 4014 Sizes Hexagon Head Bolts ISO 4014 size chart Hexagon Head Bolts ISO 4014 size guide Hexagon Head Bolts ISO 4014 dimensions
3/8″-16 x 1-1/2″ Hexagon Head Bolts ISO 4014 3/8″-16 x 1-1/4″ Hexagon Head Bolts ISO 4014 3/4″-10 x 3″ Hexagon Head Bolts ISO 4014
1/2″-13 x 3″ Hexagon Head Bolts ISO 4014 1/2″-13 x 2-1/2″ Hexagon Head Bolts ISO 4014 5/16″-18 x 1″ Hexagon Head Bolts ISO 4014
3/8″-16 x 1″ Hexagon Head Bolts ISO 4014 5/8″-11 x 3″ Hexagon Head Bolts ISO 4014 3/8″-16 x 3/4″ Hexagon Head Bolts ISO 4014
1/2″-13 x 1-1/2″ Hexagon Head Bolts ISO 4014 1/2″-13 x 2″ Hexagon Head Bolts ISO 4014 5/16″-18 x 1-1/4″ Hexagon Head Bolts ISO 4014
1/4″-20 x 1″ Hexagon Head Bolts ISO 4014 3/8″-16 x 2″ Hexagon Head Bolts ISO 4014 5/8″-11 x 4″ Hexagon Head Bolts ISO 4014
5/8″-11 x 2-1/2″ Hexagon Head Bolts ISO 4014 3/8″-16 x 2-1/2″ Hexagon Head Bolts ISO 4014 3/8″-16 x 3″ Hexagon Head Bolts ISO 4014
1/2″-13 x 1-1/4″ Hexagon Head Bolts ISO 4014 3/4″-10 x 2-1/2″ Hexagon Head Bolts ISO 4014

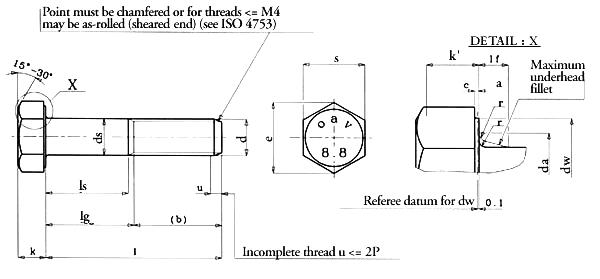

Hexagon Head Bolts ISO 4014 Dimensions

Hexagon Head Bolts ISO 4014
Thread Size
M5
M6
M8
M10
M12
M16
M20
M24
M30
M36
Pitch
0.8
1
1.25
1.5
1.75
2
2.5
3
3.5
4
B(L ≤ 125)
16
18
22
26
30
38
46
54
66
78
B(125 < L≤ 200)
-
-
28
32
36
44
52
60
72
84
B(L > 200)
-
-
-
-
-
57
65
73
85
97
K
3.5
4
5.3
6.4
7.5
10
12.5
15
18.7
22.5
E(Grade A)
8.79
11.05
14.38
17.77
20.03
26.75
33.53
39.98
50.85
60.79
E(Grade B)
8.63
10.89
14.2
17.59
19.85
26.17
32.95
39.55
50.85
60.79
S
8
10
13
16
18
24
30
36
46
55

Latest Hexagon Head Bolts ISO 4014 prices list:

We Mahabali Steel Center offer best in class Hexagon Head Bolts ISO 4014 at best market prices in India. Request the Latest Hexagon Head Bolts ISO 4014 price list using the contact form here.

SS Hexagon Head Bolts ISO 4014 Available Grades

  • Stainless Steel 304 Hexagon Head Bolts ISO 4014
  • Stainless Steel 304L Hexagon Head Bolts ISO 4014
  • Stainless Steel 309 Hexagon Head Bolts ISO 4014
  • Stainless Steel 310 Hexagon Head Bolts ISO 4014
  • Stainless Steel 316 Hexagon Head Bolts ISO 4014
  • Stainless Steel 316L Hexagon Head Bolts ISO 4014
  • Stainless Steel 317 Hexagon Head Bolts ISO 4014
  • Stainless Steel 317L Hexagon Head Bolts ISO 4014
  • Stainless Steel 321 Hexagon Head Bolts ISO 4014
  • Stainless Steel 330 Hexagon Head Bolts ISO 4014
  • Stainless Steel 347 Hexagon Head Bolts ISO 4014
  • Stainless Steel 410 Hexagon Head Bolts ISO 4014
  • Stainless Steel 430 Hexagon Head Bolts ISO 4014
  • Stainless Steel 440C Hexagon Head Bolts ISO 4014

Hexagon Head Bolts ISO 4014 Available Standards

ASTM ASTM A307 Hexagon Head Bolts ASTM A325M Hexagon Head Bolts ASTM A490M Hexagon Head Bolts
IS IS 1363 Hexagon Head Bolts IS 1364 Hexagon Head Bolts IS 2585 Hexagon Head Bolts
IS 3138 Hexagon Head Bolts IS 3640 Hexagon Head Bolts IS 10238 Hexagon Head Bolts
IS 3757 Hexagon Head Bolts IS 6639 Hexagon Head Bolts
BS BS 1083 Hexagon Head Bolts BS 1768 Hexagon Head Bolts BS 1769 Hexagon Head Bolts
ANSI ANSI B18.2.1 Hexagon Head Bolts
ISO ISO 7412 Hexagon Head Bolts

Value Added Services of Hexagon Head Bolts ISO 4014

Material Testing:
Documentation & Packaging:
Mechanical Testing Such as Tensile of Area Commercial Invoice including HS Code
Hardness Test Packing List including Complete Details
Chemical Analysis – Spectro Analysis Certificate of Origin legalized
Positive Material Identification – PMI Testing Material Traceability Records
Flattening Test Quality Assurance Plan (QAP)
Micro and MacroTest Heat Treatment Charts
Pitting Resistance Test Material Test Certificates (MTC)
Flaring Test Guarantee Letter
Intergranular Corrosion (IGC) Test NABL approved Laboratory Test Reports
